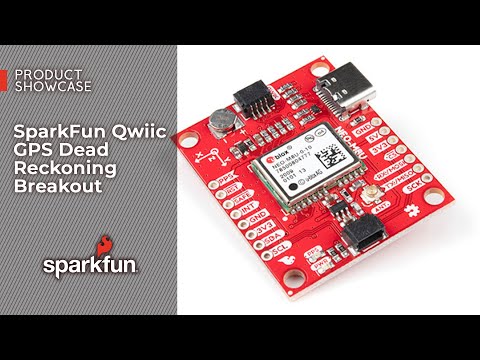

SparkFun Qwiic - GPS Dead Reckoning Breakout, NEO-M8U
Product number: GPS-16329
€89.20
Available · 8 piece · 1-3 days
€89.20
SparkFun Qwiic - GPS Dead Reckoning Breakout, NEO-M8U
Order now and secure 45 Berrys
Description
Product information "SparkFun Qwiic - GPS Dead Reckoning Breakout, NEO-M8U"
The SparkFun NEO-M8U GPS Breakout is a high-quality GPS board with equally impressive configuration options. The NEO-M8U utilises the benefits of u-blox Untethered Dead Reckoning (UDR) technology. The module enables continuous navigation without the need for an electrical connection to the vehicle, reducing installation costs for aftermarket dead reckoning applications.
The NEO-M8U module is a 72-channel GNSS receiver of the u-blox M8 engine, which means it can receive signals from the GPS, GLONASS, Galileo and BeiDou constellations with an accuracy of ~2.5 metres. The module supports the simultaneous reception of three GNSS systems. The combination of GNSS and integrated 3D sensor measurements on the NEO-M8U provides accurate real-time positioning rates of up to 30 Hz.
Compared to other GPS modules, this breakout maximises positioning accuracy in dense urban or covered areas. Even in poor signal conditions, continuous positioning is possible in urban environments and even with complete signal loss (e.g. in short tunnels and multi-storey car parks). With UDR, positioning starts as soon as the map is powered, even before the first GNSS fix is available! The lock time is further reduced by the integrated battery; you have a backup power supply that allows the GPS to achieve a hot lock within seconds!
Additionally, this u-blox receiver supports I2C(u-blox calls this Display Data Channel), which makes it perfect for Qwiic compatibility so we don't have to use up our precious UART ports. Since we are using our handy Qwiic system, no soldering is required to connect it to the rest of the system. Still, we've broken out the pins at 0.1" spacing in case you'd rather use a breadboard.
U-blox based GPS products are configurable with the popular but dense Windows program called u-center. Many different functions can be configured on the NEO-M8U: Baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GPS, etc. All this can be done within the SparkFun Arduino Library!
The SparkFun NEO-M8U GPS Breakout is also equipped with an on-board battery that powers the RTC on the NEO-M8U. This reduces the time to first fix from a cold start (~26s) to a warm start (~1.5s). The battery maintains the RTC and GNSS orbit data over a long period of time even without a power connection.
This product requires an antenna: Take a look at the associated products/accessories and select a suitable U.FL antenna for your project.
Features:
The NEO-M8U module is a 72-channel GNSS receiver of the u-blox M8 engine, which means it can receive signals from the GPS, GLONASS, Galileo and BeiDou constellations with an accuracy of ~2.5 metres. The module supports the simultaneous reception of three GNSS systems. The combination of GNSS and integrated 3D sensor measurements on the NEO-M8U provides accurate real-time positioning rates of up to 30 Hz.
Compared to other GPS modules, this breakout maximises positioning accuracy in dense urban or covered areas. Even in poor signal conditions, continuous positioning is possible in urban environments and even with complete signal loss (e.g. in short tunnels and multi-storey car parks). With UDR, positioning starts as soon as the map is powered, even before the first GNSS fix is available! The lock time is further reduced by the integrated battery; you have a backup power supply that allows the GPS to achieve a hot lock within seconds!
Additionally, this u-blox receiver supports I2C(u-blox calls this Display Data Channel), which makes it perfect for Qwiic compatibility so we don't have to use up our precious UART ports. Since we are using our handy Qwiic system, no soldering is required to connect it to the rest of the system. Still, we've broken out the pins at 0.1" spacing in case you'd rather use a breadboard.
U-blox based GPS products are configurable with the popular but dense Windows program called u-center. Many different functions can be configured on the NEO-M8U: Baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GPS, etc. All this can be done within the SparkFun Arduino Library!
The SparkFun NEO-M8U GPS Breakout is also equipped with an on-board battery that powers the RTC on the NEO-M8U. This reduces the time to first fix from a cold start (~26s) to a warm start (~1.5s). The battery maintains the RTC and GNSS orbit data over a long period of time even without a power connection.
This product requires an antenna: Take a look at the associated products/accessories and select a suitable U.FL antenna for your project.
Features:
- Integrated U.FL connector for use with an antenna of your choice
- 72-channel GNSS receiver
- 2.5m horizontal accuracy
- 30Hz maximum update rate
- Time-To-First-Fix
- Cold: 26s
- Hot: 1.5s
- Max. Altitude: 50.000m
- Max G: ?4
- Max speed: 500m/s
- Speed accuracy: 0.5m/s
- Heading accuracy: 1 degree
- Built-in accelerometer and gyroscope
- Time pulse accuracy: 30ns
- 3.3V VCC and I/O
- Power consumption: ~29mA Continuous Tracking, Standard Concurrent Mode
- Software configurable
- Geofencing
- Odometer
- Spoofing detection
- External interrupt
- Pin control
- Low power mode
- Many others!
- Supports NMEA, UBX and RTCM protocols via UART or I2C interfaces
Properties
| Zolltarifnummer: | 85269120 |
|---|---|
| Brand: | SparkFun |
| Country of Origin: | USA |
| Gross Weight (kg): | 0.007 |
| Manufacturer ID: | GPS-16329 |
| Product ID: | GPS-16329 |
Manufacturer and safety information
Manufacturer information
SparkFun Electronics
6333 Dry Creek Parkway
DE CO 80503 Niwot
https://www.sparkfun.com
support@sparkfun.com
WEEE number: 17968585
Person responsible for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
info@berrybase.de
Safety instructions
SparkFun Electronics
6333 Dry Creek Parkway
DE CO 80503 Niwot
https://www.sparkfun.com
support@sparkfun.com
WEEE number: 17968585
Person responsible for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
info@berrybase.de
Safety instructions
- Before commissioning the GPS/GNSS module, check all connections carefully to avoid short circuits.
- Protect the device from moisture, extreme temperatures and other environmental influences.
- Only use with the specified operating voltage and the specified components.
- During installation, ensure that the antenna has a clear view of the sky to guarantee optimum signal quality.
- Handle components with care to avoid damage caused by electrostatic discharge (ESD).
- Do not use in the vicinity of strong magnetic or electromagnetic fields.
- At the end of its service life, dispose of it in an environmentally friendly manner and in accordance with local regulations.
- Do not dispose of electronic components with household waste, but take them to an appropriate collection point.
