2.9" 296×128 ePaper display module with SPI interface, three-colour (red, black, white)
Product number: 3C-EINKM-29
€17.90
Available · 21 piece · 1-3 days
€17.90
Customers also bought
Available · 6 piece · 1-3 days
Available · 21 piece · 1-3 days
Available · 100+ piece · 1-3 days
Available · 15 piece · 1-3 days
Available · 100+ piece · 1-3 days
Available · 100+ piece · 1-3 days
Available · 24 piece · 1-3 days
Available · 1 piece · 1-3 days
Available · 88 piece · 1-3 days
Available · 82 piece · 1-3 days
Available · 100+ piece · 1-3 days
Available · 9 piece · 1-3 days
Available · 100+ piece · 1-3 days
Available · 59 piece · 1-3 days
Available · 100+ piece · 1-3 days
Available · 20 piece · 1-3 days
Available · 57 piece · 1-3 days
Description
Product information "2.9" 296×128 ePaper display module with SPI interface, three-colour (red, black, white)"
This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Operating voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 89.5mm × 38mm
- Display size: 66.89mm × 29.05mm
- Dot pitch: 0.138 × 0.138
- Resolution: 296 × 128
- Display colour: black, red, white
- Grey level: 2
- Full refresh time: 15s
- Refresh power: 26.4mV(typ.)
- Standby power: <0.17mV
- Viewing angle: >170°
Interface
| SYMBOL | DESCRIPTION |
| VCC | 3.3V |
| GND | Ground |
| DIN PIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, low active |
Scope of delivery
- 2.9inch e-Paper Module (B)
- Cable XH2.54 20cm 8Pin
Documentation / Downloads
Properties
| Zolltarifnummer: | 85285900 |
|---|---|
| Brand: | Waveshare |
| Country of Origin: | China |
| EAN: | 0614961950863 |
| Gross Weight (kg): | 0.031 |
| Manufacturer ID: | 2.9inch e-Paper Module (B) |
| Product ID: | 3C-EINKM-29 |

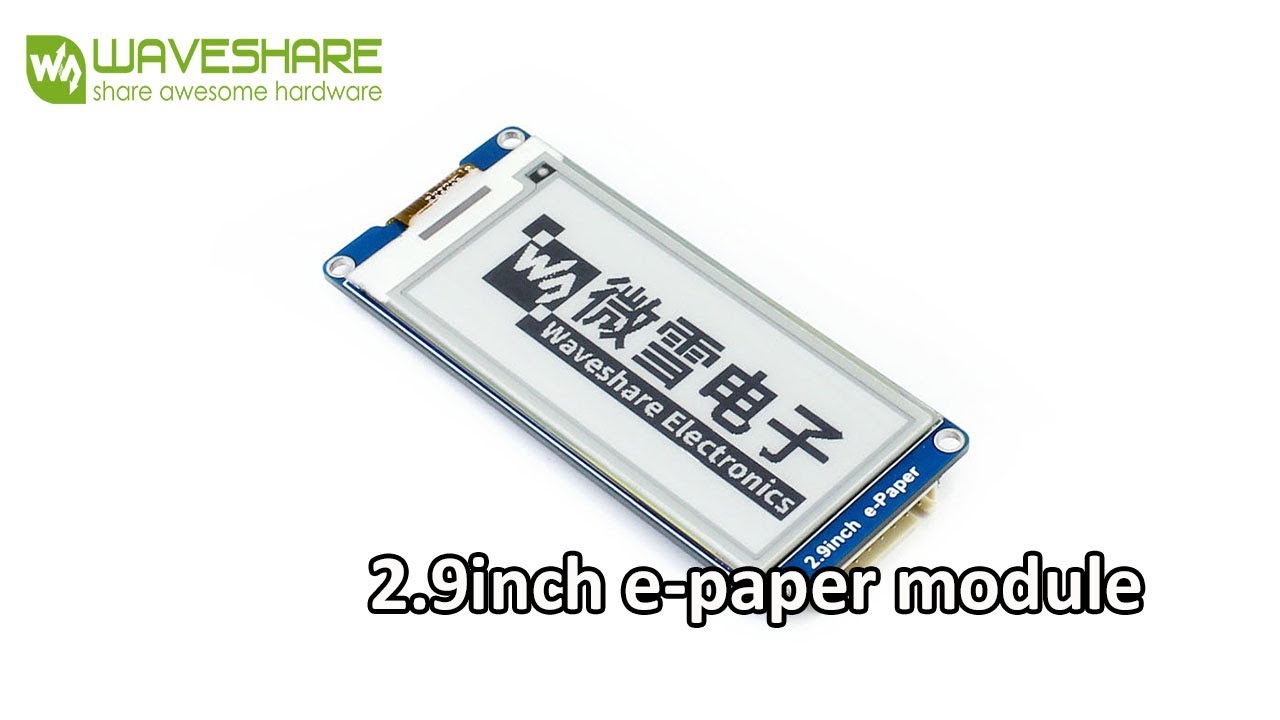

Video 1
