SparkFun Qwiic - Capacitive touch slider, CAP1203
€7.75
Description
Product information "SparkFun Qwiic - Capacitive touch slider, CAP1203"

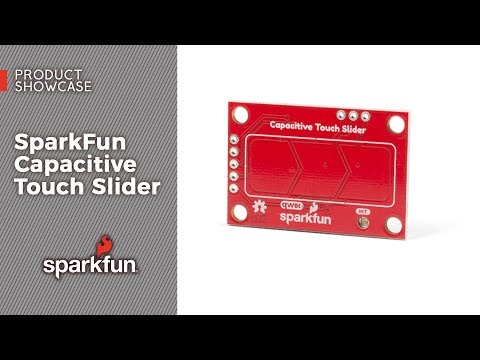

On the front of the board is an arrow shape that contains three separate capacitive touchpads. We have also broken out the leads from the capacitive touch sensors as vias on the top of the board. You can use these pins to connect your own capacitive touch pads. The CS1 pin is connected to the left pad, the CS2 pin to the centre pad and the CS3 pin to the right pad.
Note: The I2C address of the CAP1203 is 0x28 and is hardware-defined. A multiplexer/mux is required for communication with several CAP1203 sensors on one bus. If you want to use more than one CAP1203 sensor, you should use the Qwiic Mux Breakout.
Features:
- Capacitive touch
- 3 unique capacitive touch inputs
- Features
- Emulated slider
- Power button adjustment
- Programmable sensitivity
- Automatic recalibration
- I2C address: 0x28
- Qwiic Enabled
- Operating range
- Supply voltage: 3.3V - 5V
Properties
| Zolltarifnummer: | 85423900 |
|---|---|
| Brand: | SparkFun |
| Country of Origin: | USA |
| EAN: | 845156009633 |
| Gross Weight (kg): | 0.003 |
| Manufacturer ID: | SEN-15344 |
| Product ID: | SEN-15344 |
