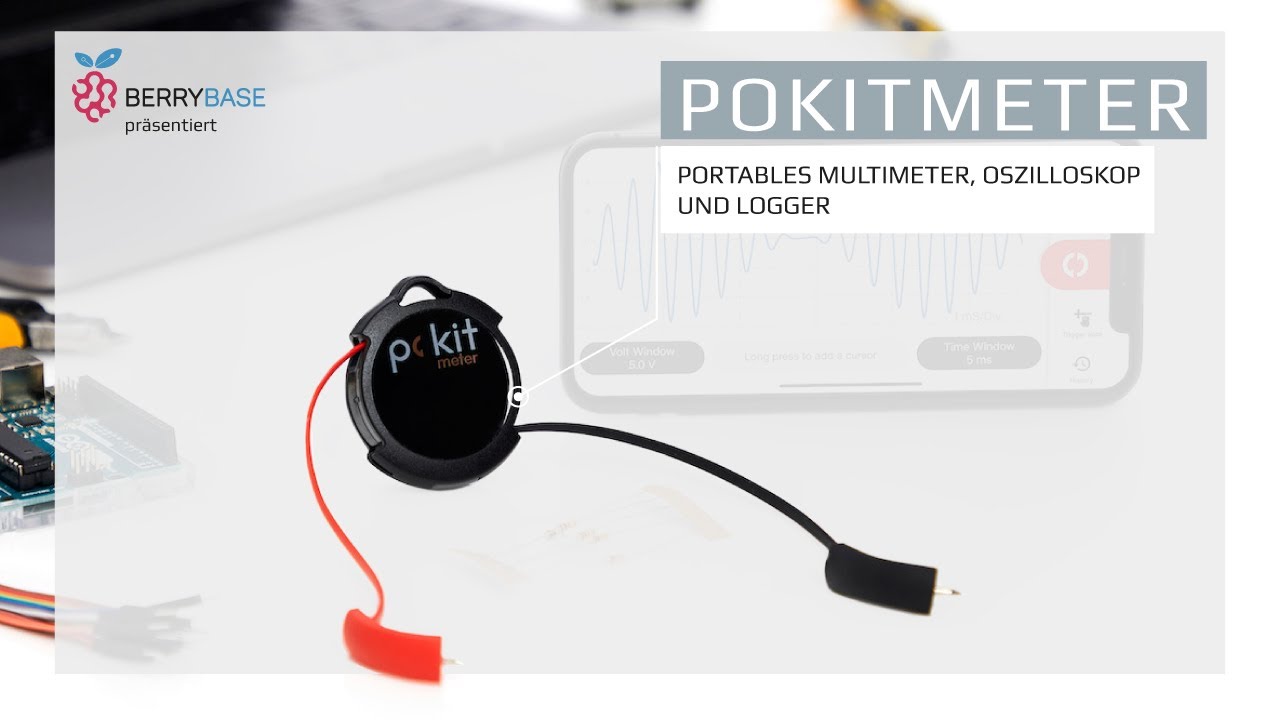

PokitMeter - Portable multimeter, oscilloscope and logger, transparent
Product number: POKIT-T
Product information "PokitMeter - Portable multimeter, oscilloscope and logger, transparent"
Turn your mobile phone or tablet into a great tool.
Measure. Everything. Everywhere.
Pokit measures, displays and logs a variety of parameters such as voltage, current, resistance and temperature. It also offers a continuity and diode tester. Pokit is ideal for low-voltage electronics, automotive applications, home automation, etc.
It connects wirelessly via Bluetooth to your smartphone or tablet and is amazingly easy to use. Simply touch to change modes and settings, and pinch to pan and zoom waveforms.
Full-featured multimeter
Pokit is a full-featured multimeter that accurately measures AC/DC voltage, AC/DC current, resistance and ambient temperature. It also includes a continuity and diode tester. Measurements are displayed in real time directly on your smartphone. Simply tap the display to select a measurement mode.
- True RMS measurement
- Auto-Ranging
- Voltage: 10mV to 60V DC, 42V AC (RMS), ±1%.
- Current: 1mA to 2Amax, ±1%
- Resistance: 1 to 1M Ohm, ±5%.
- Ambient temperature: 1 to 60°C ±1°C
- Continuity and diode polarity tester
Digital storage oscilloscope
Pokit DSO captures detailed voltage and current waveforms for display on your smartphone. It also allows you to operate in the frequency domain using FFT for use as a spectrum analyser. Simply pinch to set the capture voltage scale and time base and tap to select a trigger mode.
The captured waveforms are displayed in impressive detail. You can zoom and pan by pinching and zooming. Long press on the graph to adjust the cursors and track your signals.
- FFT mode: Use Pokit as a spectrum analyser
- Sampling: 1 sample/sec, 12-bit
- Voltage: 10mV to 60V DC, 42V AC (RMS), ±1%.
- Current: 1mA to 2Amax, ±1%
- Recording window from 1mS to 10s
- Automatic triggering or adjustable rising/falling triggering level
Long-term parameter monitoring
Pokit functions as a stand-alone data logger, recording temperature, voltage or current waveforms for up to 6 months without connection to a phone. The waveforms can be downloaded to your phone for display.
- 12-bit sampling
- Voltage: 10mV to 60V DC, 42V AC (RMS), ±1%.
- Current: 1mA to 2Amax, ±1%
- 1 to 8000 points memory
- Up to 6 months logging
Technical specifications
- Electrical specifications
- Voltage measuring range: 10mV to 60V DC, 42V AC (RMS), ±1%.
- Measuring range current: 1mA to max. 2A, ±1%
- Measuring range resistance: 1 to 1M Ohm, ±5%.
- Measuring range temperature: 0 - 60°C, ±1°
- Logging rate: 1s to 1 day
- Continuity and diode polarity test
- Sampling: 1M samples/sec. at 12 bits
- Logging period: up to 6 months
- Connectivity: Bluetooth
- Range: 0 - 10m
- Power supply: CR2032 lithium battery
- Battery life: approx. 6 months
- Mechanical specifications
- Dimensions: ∅50mm by 18mm in size
- Lead length: 200mm per side, 400mm in total
- Weight: 80g
- Scope of delivery
- 1x Pokit-Meter
- 1x storage bag
- 2x test probe with hook
- 1x CR2032 battery
- 2x 2A fuses
| Zolltarifnummer: | 90303100 |
|---|---|
| Brand: | Pokit |
| Color: | clear |
| Country of Origin: | China |
| EAN: | 9369998222018 |
| Gross Weight (kg): | 0.087 |
| Manufacturer ID: | POK-TRP |
| Product ID: | POKIT-T |
| VPE: | 1 |
Pokit
PokitMeter: The world's smallest multimeter
Depending on your current project, it can be significant to check a wide variety of measured variables on a regular basis - and ideally at different locations as well. If you need a portable, pocket-sized multimeter for purposes like this, the PokitMeter is for you.
The compact and powerful 12-bit oscilloscope weighs just 80 grams and has a diameter of a handy 50 mm. It not only measures numerous parameters such as voltage (10mV to 60V DC, 42V AC [RMS], ±1%), resistance (1 to 1 million ohms, ±5%), current (1mA to 2A, ±1%) and temperature (1 to 60°C, ±1°C) with high precision, but also logs them. In addition, it is equipped with both a continuity tester and a diode test. The FFT mode even allows the multimeter to be turned into a spectrum analyzer. With all its features, the PokitMeter can consequently be of great use as a portable oscilloscope in many different areas, for example in home automation or low-voltage electronics.
Convenient: The PokitMeter can also be connected to your mobile device via Bluetooth. This makes it ideal as an oscilloscope for your smartphone or tablet. Thanks to the free PokitMeter app for iOS and Android, you can easily document the measurement series on your mobile device, voltage and current curves are displayed in detail and easy to understand on your mobile display. With the Pokit voltmeter, your smartphone becomes the ultimate tool! Best of all, it's surprisingly easy and intuitive to use. Waveforms are easy to pan and zoom; settings and modes can be easily changed on your versatile oscilloscope using the touch function. For example, you can adjust the acquisition voltage and time base and activate a trigger mode. Even without a connection to a mobile device, the collected measurement data is recorded over a period of up to six months.
At Berrybase, you can get the PokitMeter in either classy black or chic transparent - the choice is yours! You can also find a fuse set with five replacement fuses including fuse covers in our online store - so that the PokitMeter remains a reliable portable oscilloscope for as long as possible.
Pokit Innovations Pty Ltd
56 Delhi Road
AU NSW 2113 Sydney
https://www.pokitmeter.com
support@pokitmeter.com
WEEE number: 52375143
Responsible person for the EU
Sertronics GmbH
Am Studio 20d
DE 12489 Berlin
https://www.berrybase.de
info@berrybase.de
Safety instructions
- Read and follow the operating instructions carefully before use.
- Never use the multimeter on live cables that exceed the specified input voltage of the device.
- Only use insulated test leads and measuring accessories with a suitable voltage class.
- Protect the device from moisture, extreme temperatures and shocks.
- Replace defective or damaged test probes and cables immediately.
- Switch off the multimeter before changing the battery or carrying out maintenance work.
- Only insert batteries with the correct polarity, remove leaking batteries immediately.
- Dispose of in accordance with local environmental regulations, especially for electronic components and batteries.
- Do not dispose of the multimeter in open flames as there is a risk of explosion.
- Keep the device out of the reach of children.
